GEN-2 Parts

GEN-2 Parts

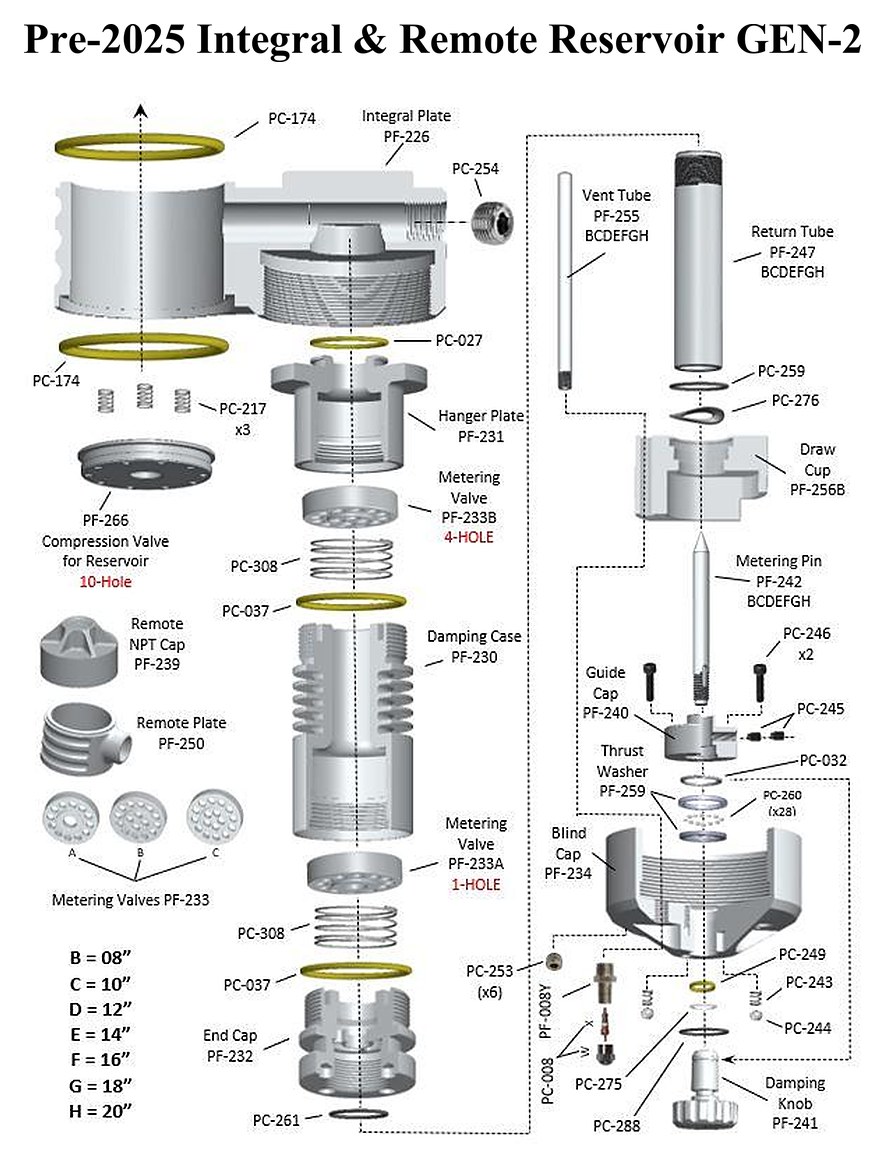

Pre-2025 Integral & Remote Reservoir GEN-2 exploded-view parts diagram

GEN-2 Integral & Remote ReservoirExploded view + part numbersParts Diagram

Rebuild Kit, Integral & Remote Reservoirs

Rebuild Kit, Integral & Remote Reservoirs

$95.50

O-Ring, Shell and Reservoir

O-Ring-232, Shell & Int-Resvor

$4.95

O-Ring, Rebound Pipe

O-Ring, 1" Rebound Pipe

$0.75

Valve Core

$2.15

O-Ring, Lower Mount/Piston/Reservoir

O-Ring -127, Lower Mnt /Piston

$3.39

compression-valve-spring-pc-217

Compression Valve Spring

$1.20

Bump Piston Return Spring

Sprial Retain Ring, Dmpr Screw

$0.88

Metering Valve Spring, White (softest)

Metering Valve Spring

$2.15

O-Ring, Damper Body/Hanger Plate

O-Ring -122 Damper Body

$3.69

Steel Ball 1/16"

Steel Ball 1/16"

$0.15

Pre-2025 Integral & Remote Reservoir GEN-2

Filler Valve Stem, Machined

$6.50

O-Ring, Reservoir Draw Cup

O-Ring, Reservoir Draw Cup

$0.75

Reservoir Blind Cap

Reservoir Blind Cap

$89.95

Where PC-337 sits in the ORI GEN-3 Race Strut - exploded diagram with the part highlighted

O-Ring-012, Damping Knob Shaft

$1.75

Pipe Plug 1/2-14 NPT

Pipe Plug 1/2-14 NPT

$6.75

Compression Valve for STX Strut with Integral or Remote Reservoir, 10-Hole

Compression Valve for STX Strut with Integral or Remote Reservoir, 10-Hole

$24.95

O-Ring-109, Damping Knob Shaft

O-Ring-109, Damping Knob Shaft

$1.75

Damping End Cap

Damping End Cap

$39.95

Thrust Washer, Reservoir

Thrust Washer, Reservoir

$4.95

O-Ring, Damping Knob Face

O-Ring, Damping Knob Face

$0.75

Reservoir Plate, Remote

Reservoir Plate, Remote

$135.95
