MTX MUDSYS31 Bluetooth Overhead UTV Audio System
The MUDSYS31 MTX Soundbar for UTVs delivers quality sound to UTV owners. Mountable on anything with a 1.75" or 2" diameter roll cage.
User Manual
https://jensenbrosoffroad.com/sites/default/files/mudsys-owners-manual.pdf
Universal Input

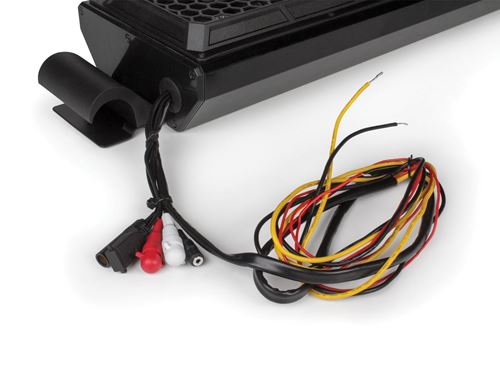

A single harness with +12-volt, ground, and ignition wires is internally wired to the amplifier and are the only electrical connections that need to be made to make the unit operational.
Fully Functional

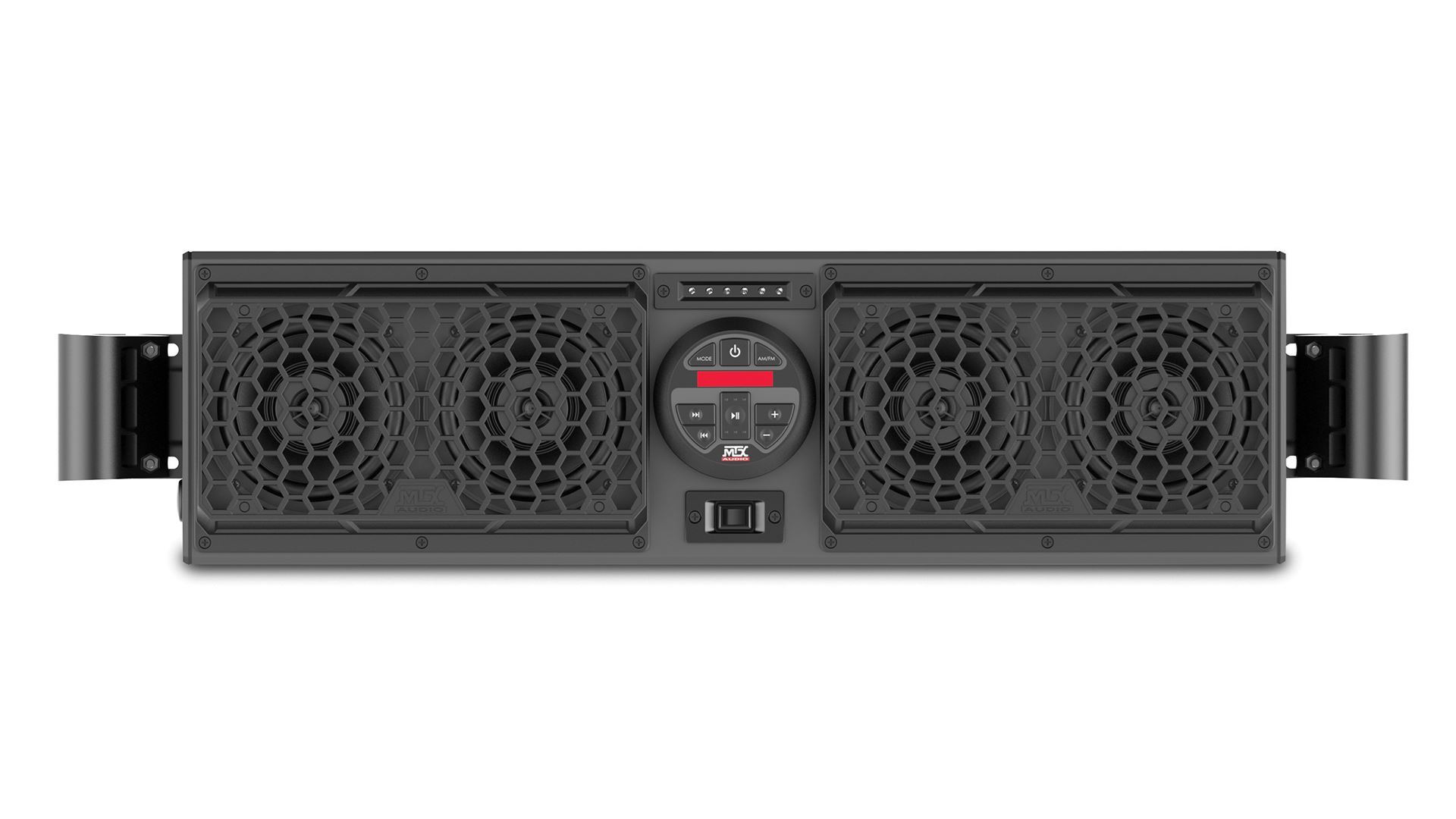

The source unit includes:
- Four 6.5" coaxial speakers
- Integrated amplifier
- Support for Bluetooth**
- 3.5mm auxliary
- USB inputs
- digital AM/FM radio
- digital clock
- switch controlled LED map light
- RCA output for connecting external amplifiers to run additional speakers or subwoofers
High Output
Four 6.5" all-weather coaxial speakers deliver excellent sound quality and volume, including bass, so you can hear your music loud and clear even when wearing a helmet or speeding down the trail.
Extendable Reach
The MUDSYS31 can be used with UTV models that have a cages between 1.75" - 2" diameter and whose inside dimension is between 32.25" to 38.75". For cages that have ProFit or Profile cages, the MUDSYSPFCLAMP, is available to replace the standard clamp.
Got Angles, No Problem
The MUDSYS31 clamp can be loosened allowing it to fit on a variety of cages including those with angles that prevent other sound bars from properly securing to the cage. The clamp is fully adjustable and easy to install.
MUDSYS31 Fits These Models with Factory Cages
|
|
Specifications
| Height | 8.5" (21.59cm) |
| Depth | 4.125" (10.48cm) |
| Width | 29.5" (75cm) |
*Unit may reduce headroom in vehicle once installed, especially for riders wearing helmets.
**Works with most Bluetooth enabled devices. User may be required to pair with device each time the power is cycled depending on Bluetooth hardware and software.
