8" Stroke GEN-3 Racing Strut
SKU:
STX-08-G3-IR-BLK
Category:
List price:
$1,745.00
Price:
$1,570.50
You save:
$174.50
The GEN-3 Racing Strut by ORI Struts are race proven and ready to meet your toughest requirements. Available in sizes 12”, 14”, 16”, 18”, and 20” stroke lengths. Shipments will begin in January 2025, so place your orders now for our limited first production run.
Features and Improvements
- Double return oil flow (prevents packing)

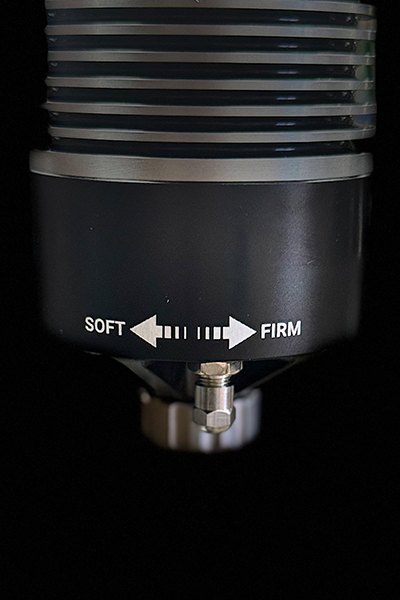

- Improved compression damping adjustment—easy turn knob.
- Compression damping stages spaced for improved full-stroke damping.
- Velocity-sensing compression damping improved to provide smooth ride in choppy terrain, firm support in jumps.
- Seal glands redesigned to withstand extreme pressure spikes.
- Overall, GEN3 is vastly improved to handle short course and endurance race environments. Your suspension should be tough enough to take a beating so you and your car don’t.

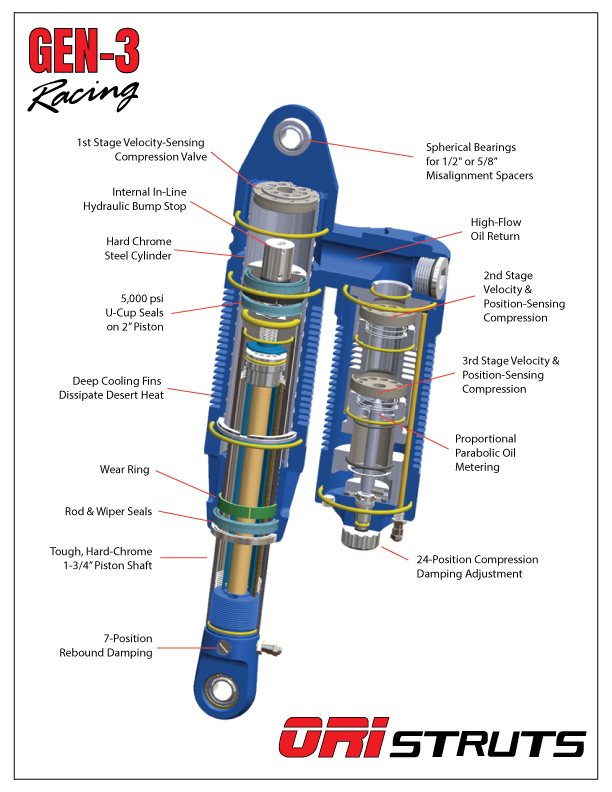

Specifications:
- 1st Stage Velocity-Sensing
Compression Valve - Internal In-Line
Hydraulic Bump Stop - Hard Chrome
Steel Cylinder - 5,000 psi
U-Cup Seals
on 2” Piston - Deep Cooling Fins
Dissipate Desert Heat - Wear Ring
- Rod & Wiper Seals
- Tough, Hard-Chrome
1-3/4” Piston Shaft - 7-Position
Rebound Damping - Spherical Bearings
for 1/2" or 5/8”
Misalignment Spacers - High-Flow
Oil Return - 2nd Stage
Velocity &
Position-Sensing
Compression - 3rd Stage Velocity &
Position-Sensing
Compression - Proportional
Parabolic Oil
Metering - 24-Position Compression
Damping Adjustment
Box Dimensions:
22 × 13 × 6 in
Box Weight:
18 lb
Strut Size
8"
